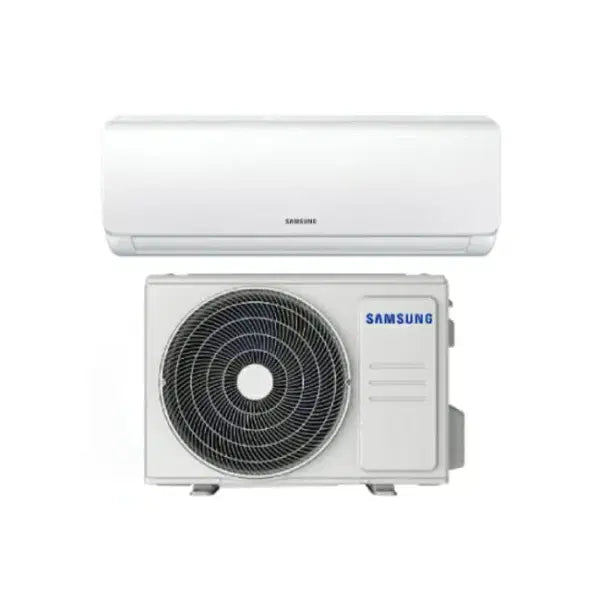

| Capacity2 | Model Code (Indoor) | AR12AXHQAWKNSA | |
| Model Code (Outdoor) | AR12AXHQAWKXSA | ||
| Refrigerant | R32 | ||
| Cooling | kW | 3.45 | |
| Heating | kW | 4.02 | |
| Energy Efficiency | EER | W/W | 4.26 |
| COP | W/W | 3.98 | |
| AEER | W/W | 4.24 | |
| ACOP | W/W | 3.97 | |
| Star rating (Cooling – Hot/Average/Cold) | 4.5 / 4.5 / 4.5 | ||
| Star rating (Heating – Hot/Average/Cold)) | 3.0 / 2.5 / 2.0 | ||
| Electrical Data | Power source | (V/Ph/Hz) | 220–240 / 1 / 50 |
| Current input, cooling (Rated) | A | 3.59 | |
| Current input, heating (Rated) | A | 4.47 | |
| MCA3 (Minimum circuit amperes) | A | 10.5 | |
| MFA3 (Maximum fuse amperes) | A | 16.0 | |

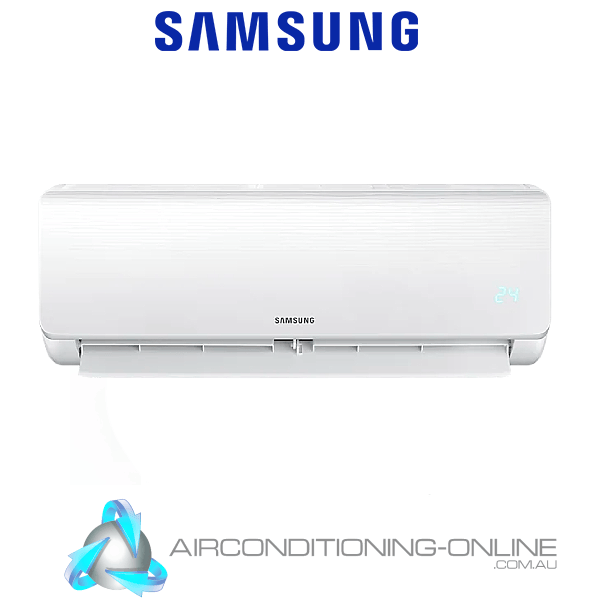

| Indoor Unit | Airflow rate, (T/H/M/L) | L/s | 186 / 136 / 122 / 92 |
| Sound pressure4 level @1m, cooling, (Cool/Heat) | dBA | 50/44/39/35 | |
| Unit Net weight | kg | 8.6 | |
| Shipping weight | kg | 11.1 | |
| Unit dimensions (WxHxD) | mm | 802x297x189 | |
| Shipping dimensions (WxHxD) | mm | 875x380x285 | |
| Outdoor Unit | Compressor type | ROTARY | |
| Sound pressure level @1m, cooling | dBA | 56.0 | |
| Unit Net weight | kg | 28.1 | |
| Shipping weight | kg | 30.5 | |
| Unit dimensions (WxHxD) | mm | 765x555x303 | |
| Shipping dimensions (WxHxD) | mm | 887x610x337 | |
| Installation | Liquid pipe | mm, inch | 6.35, 1/4″ |
| Gas pipe | mm, inch | 12.7, 1/2″ | |
| Max piping length | m | 25 | |
| Max piping height | m | 10 | |
| Operating Range | Cooling | ℃ | 0 to 50 |
| Heating | ℃ | -15 to 30 |
