Product Specification

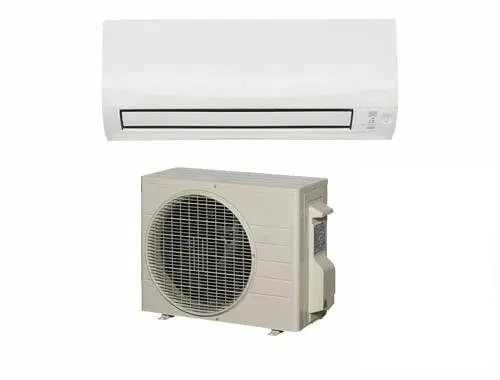

| INDOOR UNIT | FTXV25WVMA | |
| OUTDOOR UNIT | RXV25WVMA | |
| Rated Capacity | Cool (kW) | 2.5 |
| Heat (kW) | 3.2 | |
| Capacity Range | Cool (kW) | 0.9-3.7 |
| Heat (kW) | 0.9-5.4 | |
| Indoor Airflow Rate (H) | Cool (l/s) | 173 |
| Heat (l/s) | 168 | |
| Indoor Fan Speeds | 5 steps, quiet and automatic | |
| Star Rating (Hot/Avg/Cold)ZERL (Residential) | Cool | 6/5.5/5.5 |
| Heat | 3.5/3/3 | |
| Front Panel Colour | White | |
| Power Supply | 1 phase, 220-240V, 50Hz | |
| Power Input (Rated) | Cool (kW) | 0.49 |
| Heat (kW) | 0.64 | |
| E.E.R/C.O.P | Cool/Heat | 5.10/5.00 |
| TCSPF (Residential) | Hot/Avg/Cold | 7.77/7.07/7.30 |
| HSPF (Residential) | Hot/Avg/Cold | 5.10/4.86/4.53 |
| A.E.E.R/A.C.O.P | Cool/Heat | 5.05/4.96 |
| Dimensions (HxWxD) | Indoor (mm) | 285x770x223 |
| Outdoor (mm) | 550x675x284 | |
| Weight | Indoor (kg) | 9 |
| Outdoor (kg) | 30 | |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant Type | R32 | |
| Max Pipe Length | (m) | 20 |
| Max Level Difference | (m) | 15 |
| Pipe Sizes | Liquid (mm) | 6.4 |
| Gas (mm) | 9.5 | |
| Outdoor Operating Range | Cool (°CDB) | -10 to 46 |
| Heat (°CWB) | -15 to 18 | |
| Indoor Sound Level (H/SL) | Cool (dBA) | 42/19 |
| Heat (dBA) | 40/20 | |
| Outdoor Sound Level (H/SL) | Cool (dBA) | 47/43 |
| Heat (dBA) | 48/44 | |
| Outdoor EPA Sound Power Level (H) | Cool (dBA) | 59 |
| Heat (dBA) | 60 |
