Product Specification

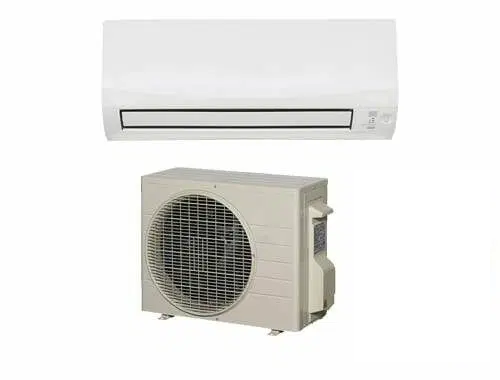

| INDOOR UNIT | FTXV20WVMA | |
| OUTDOOR UNIT | RXV20WVMA | |
| Rated Capacity | Cool (kW) | 2.0 |
| Heat (kW) | 2.7 | |
| Capacity Range | Cool (kW) | 0.9-2.8 |
| Heat (kW) | 0.9-4.4 | |
| Indoor Airflow Rate (H) | Cool (l/s) | 152 |
| Heat (l/s) | 157 | |
| Indoor Fan Speeds | 5 steps, quiet and automatic | |
| Star Rating (Hot/Avg/Cold)ZERL (Residential) | Cool | 5.5/4.5/5 |
| Heat | 3/3/2.5 | |
| Front Panel Colour | White | |
| Power Supply | 1 phase, 220-240V, 50Hz | |
| Power Input (Rated) | Cool (kW) | 0.40 |
| Heat (kW) | 0.53 | |
| E.E.R/C.O.P | Cool/Heat | 5.00/5.09 |
| TCSPF (Residential) | Hot/Avg/Cold | 7.03/6.34/6.51 |
| HSPF (Residential) | Hot/Avg/Cold | 4.65/4.57/4.34 |
| A.E.E.R/A.C.O.P | Cool/Heat | 4.93/5.04 |
| Dimensions (HxWxD) | Indoor (mm) | 285x770x223 |
| Outdoor (mm) | 550x675x284 | |
| Weight | Indoor (kg) | 9 |
| Outdoor (kg) | 28 | |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant Type | R32 | |
| Max Pipe Length | (m) | 20 |
| Max Level Difference | (m) | 15 |
| Pipe Sizes | Liquid (mm) | 6.4 |
| Gas (mm) | 9.5 | |
| Outdoor Operating Range | Cool (°CDB) | -10 to 46 |
| Heat (°CWB) | -15 to 18 | |
| Indoor Sound Level (H/SL) | Cool (dBA) | 38/19 |
| Heat (dBA) | 39/20 | |
| Outdoor Sound Level (H/SL) | Cool (dBA) | 46/43 |
| Heat (dBA) | 47/44 | |
| Outdoor EPA Sound Power Level (H) | Cool (dBA) | 58 |
| Heat (dBA) | 59 |
