Product Specification

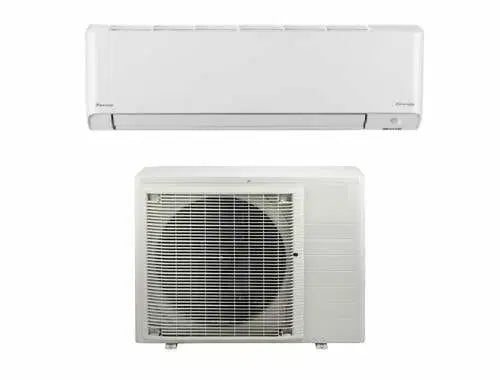

| Indoor Unit | FTXM46WVMA | |
| Outdoor Unit | RXM46WVMA | |
| Rated Capacity | Cool (kW) | 4.6 |
| Heat (kW) | 4.7 | |
| Capacity Range | Cool (kW) | 0.9-5.5 |
| Heat (kW) | 1.0-6.7 | |
| Indoor Airflow Rate (H) | Cool (l/s) | 253 |
| Heat (l/s) | 250 | |
| Indoor Fan Speeds | 5 steps, quiet and automatic | |
| Star Rating (Hot/Avg/Cold) ZERL (Residential) | Cool | 4.5/4/4.5 |
| Heat | 4/3.5/3 | |
| Front Panel Colour | White | |
| Power Supply | 1 phase, 220-240V, 50Hz | |
| Power Input (Rated) | Cool (kW) | 1.17 |
| Heat (kW) | 1.04 | |
| E.E.R/C.O.P | Cool/Heat | 3.95/4.52 |
| TCSPF (Residential) | Hot/Avg/Cold | 6.09/5.71/6.06 |
| HSPF (Residential) | Hot/Avg/Cold | 5.61/5.03/4.52 |
| A.E.E.R/A.C.O.P | Cool/Heat | 3.94/4.50 |
| Dimensions (HxWxD) | Indoor (mm) | 299x920x275 |
| Outdoor (mm) | 695x930x350 | |
| Weight | Indoor (kg) | 13 |
| Outdoor (kg) | 51 | |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant Type | R32 | |
| Max Pipe Length | (m) | 30 |
| Max Level Difference | (m) | 20 |
| Pipe Sizes | Liquid (mm) | 6.4 |
| Gas (mm) | 12.7 | |
| Outdoor Operating Range | Cool (°CDB) | -10 to 46 |
| Heat (°CWB) | -15 to 18 | |
| Indoor Sound Level (H/SL) | Cool (dBA) | 43/26 |
| Heat (dBA) | 43/26 | |
| Outdoor Sound Level (H/SL) | Cool (dBA) | 47/44 |
| Heat (dBA) | 48/45 | |
| Outdoor EPA Sound Power Level (H) | Cool (dBA) | 59 |
| Heat (dBA) | 60 |
